Overall Dimensions: 32.6" (L) (with backrest in a reclined position) x 27.5" (W) (seat incl. side flaps)
Seat Dimensions: 13.7" (W) x 16.5" (D) x 22.4" (L)
Sitting Height: 2.3" - 18.8"
Backrest Dimensions: 25.1" (H) x 12.5" - 14.1" (W)
Backrest Reclines: 50° Baseplate Dimensions 12.2" (W) x 22" (L)
Load Capacity Max: 300 lbs./136 kg.
Total Weight: (excl. hand control) 20.5 lbs.
Figure C
Figure B
Figure A

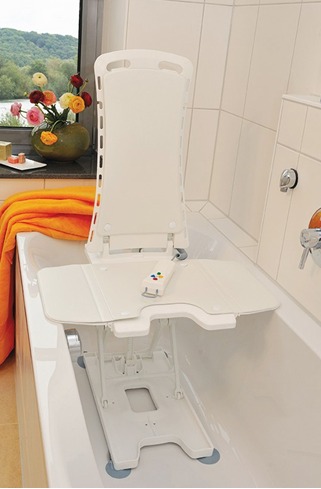

Product Summary
•The lightest bathlift on the market at only 20.5 lbs.
•The Bellavita lowers to 2.3". (Figure A)
•Seat height reaches 18.8" for deeper tubs.
•The backrest reclines to 50º at its lowest position.
•Completely tool-free set up makes it easy to install and operate. When not in use, back easily folds down for space-saving storage. (Figure B)
•Watertight hand control floats. (Figure C)
•The easy to use quick charge lithium-ion battery is accommodated in the hand control.
•Two-piece construction makes the lift easy to assemble/disassemble for transport.
•Padded seat and backrest provide added comfort.
•Washable hygienic covers are sold separately.
•Hygienic cutaway and slimline profile for easy handling.
•4 quick-release suction cups for anti-slip bath base.
•Headrest available as an option. Type your paragraph here.
